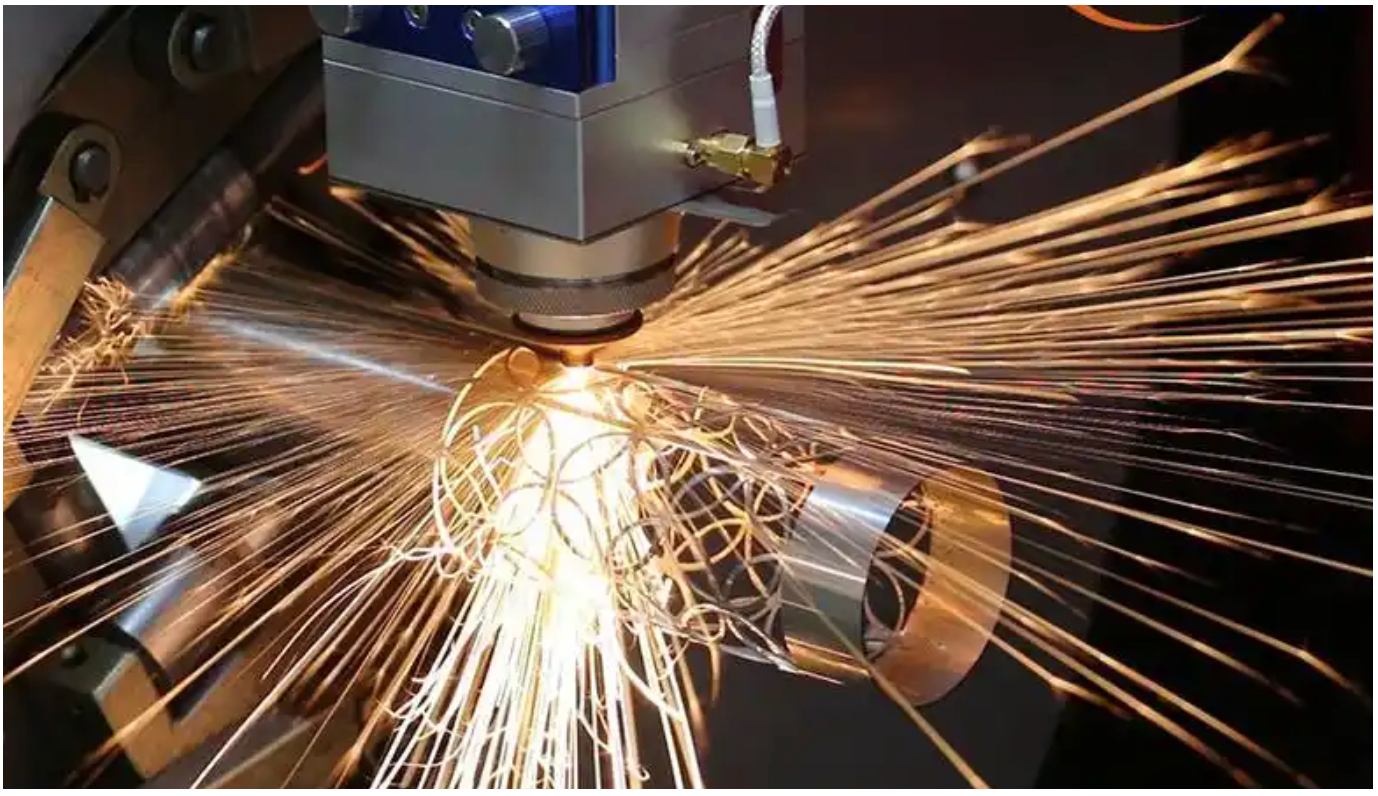

CNC Pipe Laser Cutting Machine High Accuracy for Metal Tubes

Name: CNC Pipe Laser Cutting Machine High Accuracy for Metal Tubes
Brand: D.K.HISTRON
Price: 1 USD

China CNC Pipe Laser Cutting Machine High Accuracy for Metal Tubes wholesale

Brand Name : D.K.HISTRON

Product name : Laser Cutting Machine

Supply Ability : 20 sets/month

Packaging Details : depends on machines

Cnc or not : Yes

Cutting speed : 0-40000mm/min,80m/min,0~600mm/s,Depends on the materials and its thickness,800mm/s

Function : Cutting Metal Materials,Cutting Nonmetal Materials,Cutting Metal Pipe,Cut

Keyword : Fiber Laser Cutting Machiens

Price : by the model

Certification : CE，ISO9001

Place of Origin : China

Delivery Time : 50 days

Payment Terms : T/T

MOQ : 1 set

Cooling mode : Water Cooling,protection system

Application : Laser Cutting,fiber type

Cutting thickness : Materials,0-30mm,0-25mm,6mm,Depend on material

Warranty : 1 Year

Color : Blue-white,Blue,Black white,Green-white,Required

After-sales service provided : Engineers available to service machinery overseas

Control system : cnc control,Automatic continuous feeding,Servo drivers and motors

Contact Now

CNC Pipe Cutting Machine Four Chucks Fiber Laser Tube Cutting Machine

Tube and Pipe Laser Cutting Machine

Fiber laser tube cutting machine is a high-end mechanical equipment that uses fiber laser technology for precision machining and cutting. It consists of a laser generator, load-bearing bed, cutting head, pipe clamping chuck, cooling device, and control system. The machine mixes pump material into the fiber, excites the fiber with specific wavelength laser to generate laser, and focuses it on the workpiece surface for cutting.

Applications

Fiber optic laser pipe cutting machine is widely used for processing various metal materials including stainless steel, carbon steel, alloy steel, silicon steel, aluminum, magnesium aluminum alloy, and copper. Applications include metal sheet processing, advertising sign production, electronic equipment shell manufacturing, mechanical components, kitchenware, automotive parts, and metal crafts.

Cutting Parameters

Materials: Stainless steel, carbon steel, galvanized steel, aluminum, copper
Cutting shapes: Square tube, round tube, rectangular tube, elliptical tube
Specific profiles: I-beam, H-beam, channel steel, equilateral angle steel, unequal angle steel, flat steel
Maximum cutting diameter: 350mm for square and round pipes
Maximum length: 6.5m
Core features: Low investment cost, fast operating speed, high cutting accuracy, small space occupation

Product Selling Points

High-Accuracy Cutting: Ensures precise cuts for metal tubes
Energy Saving: Reduces operational costs while maintaining efficiency
Long Service Life: Built to last, minimizing downtime
Flexible Manufacturing: Adapts to various tube cutting needs
High Rigidity: Stable performance even under heavy loads

Technical Specifications

Parameter	Specification
Model	Fiber laser cutting pipe machine
Tube length	6000mm
Maximum diameter	10-245mm
Fiber power	1500W/2000W/3000W/6000W/8000W/10000W/12000W/15000W/20000W
Laser length	1064nm
Beam quality	<0.373mrad
Cutting accuracy	±0.05mm
Repeated positioning accuracy	±0.03mm
Maximum operation speed	40 meters/minute
Cutting speed	Depends on the material
Auxiliary gas	Air, oxygen, nitrogen
Position Type	Red dot
Working Voltage	380V/50Hz

CNC Pipe Laser Cutting Machine High Accuracy for Metal Tubes

Frequently Asked Questions

Q1. How can I get the suitable machine?

Please tell us the materials you need to process, and the material size including length, width and thickness. We will suggest a suitable machine according to your requirements.

Q2. What about the after-sale service for this machine?

We support 24 hours online service and can use remote control to help you check and solve problems. We also provide on-site service for installation and training.

Q3. Does the machine have CE, ISO and other safety certificates?

All our machines have safety certificates. You can request the electronic version of the certificate from our sales staff.

Q4. What is the delivery time for the machine?

Fast delivery. The delivery time for most machine models is usually within 50 days.
